Transportation DUBLIN LINK PEDESTRIAN BRIDGE

INSIDE THE PROJECT

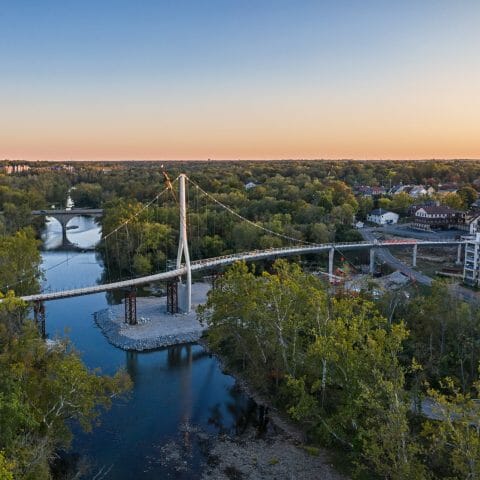

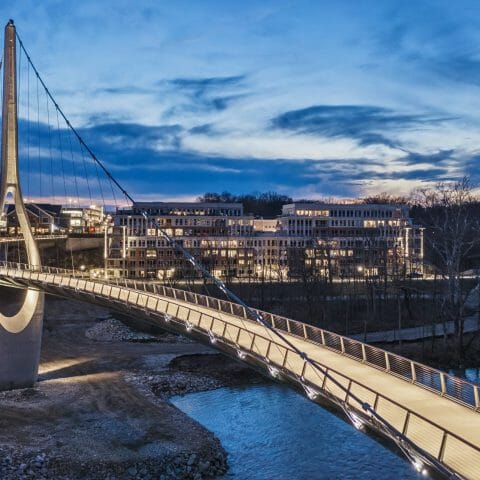

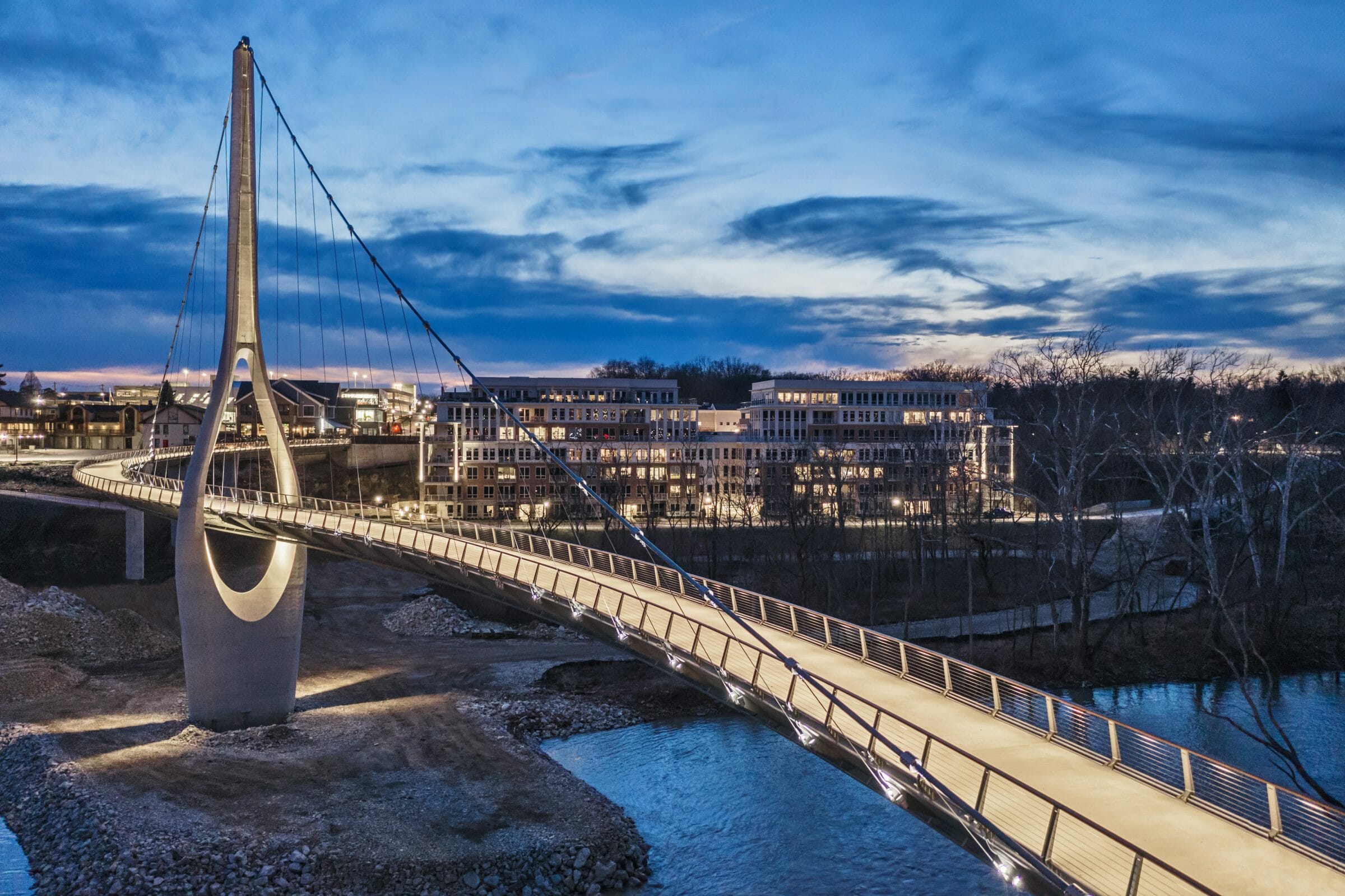

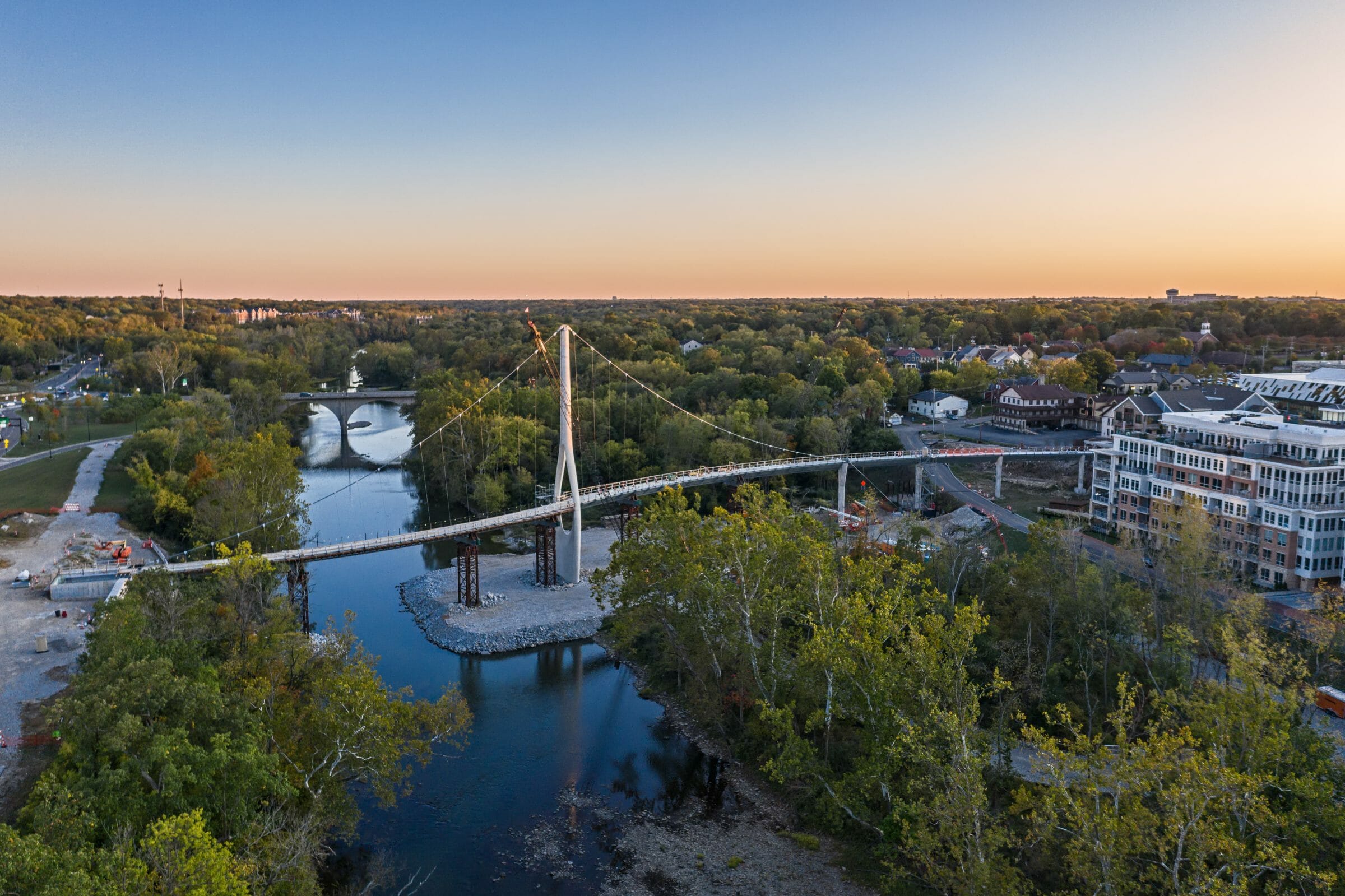

Kokosing served as the Construction Manager/General Contractor (CM/GC) to the City of Dublin, Ohio to construct a new pedestrian and bicycle bridge over the Scioto River. This iconic landmark connects downtown Dublin to the future Riverside Crossing Park.

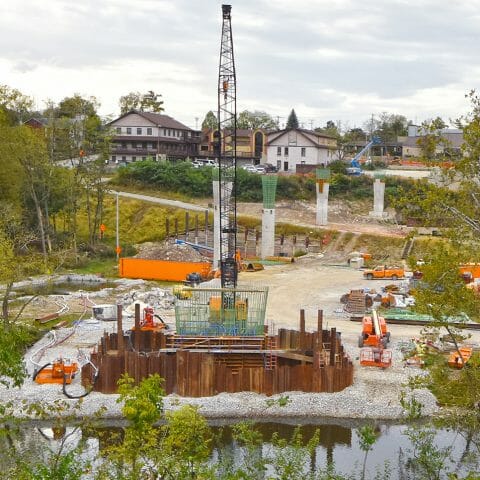

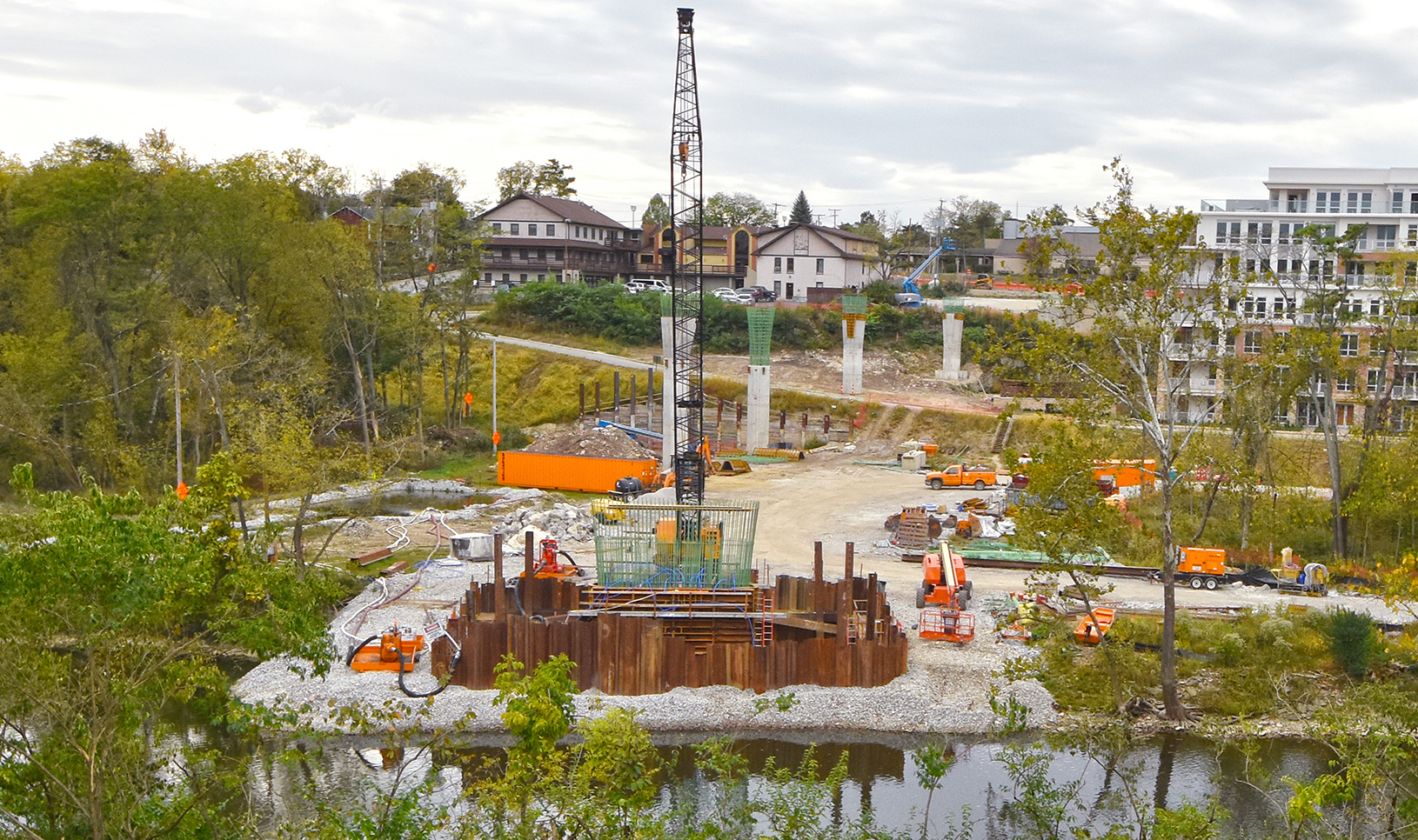

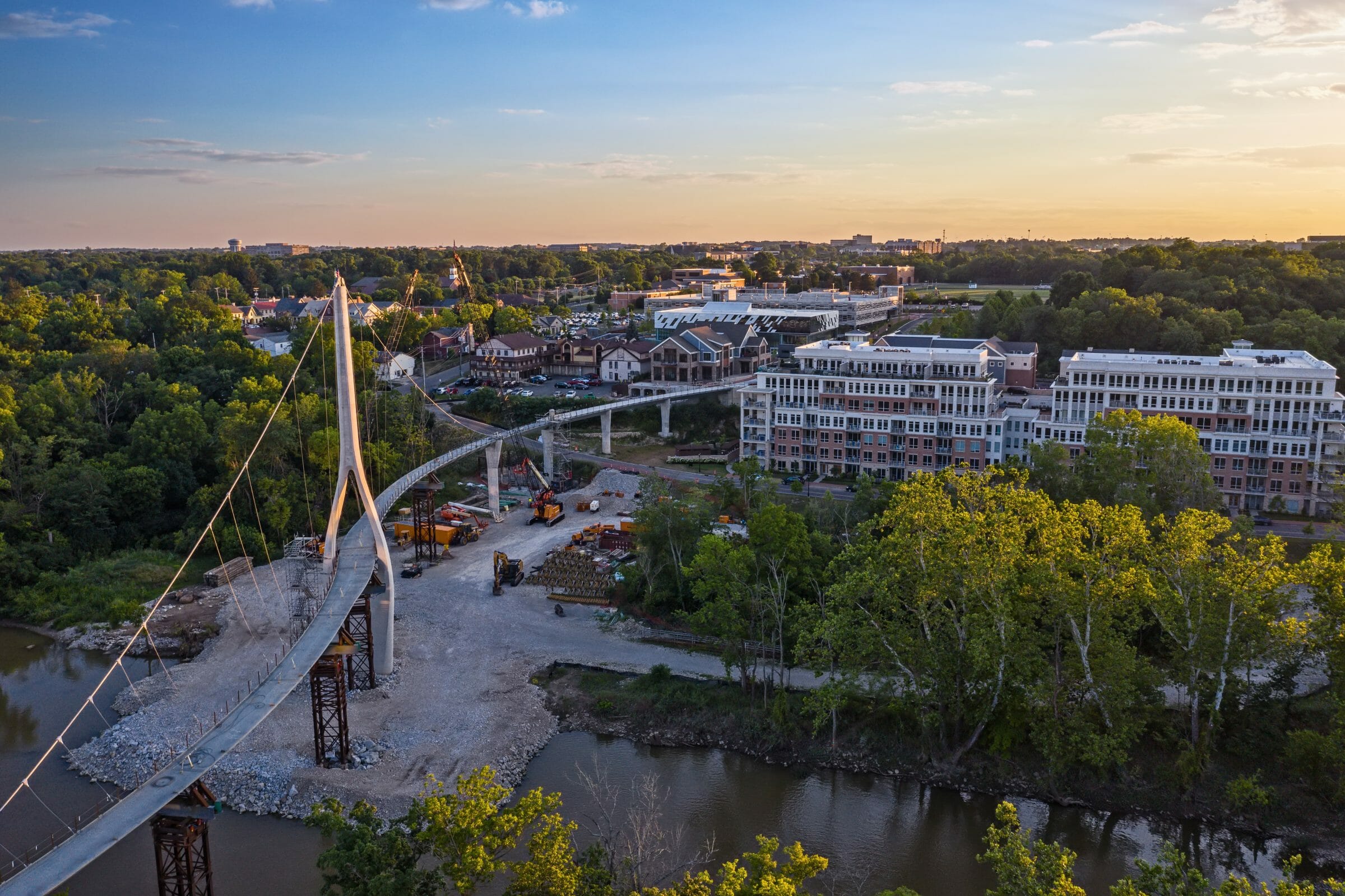

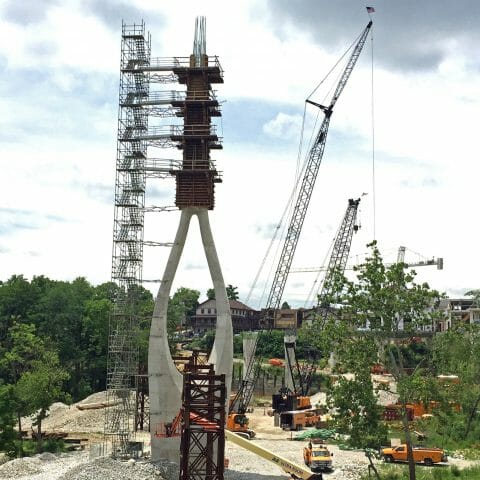

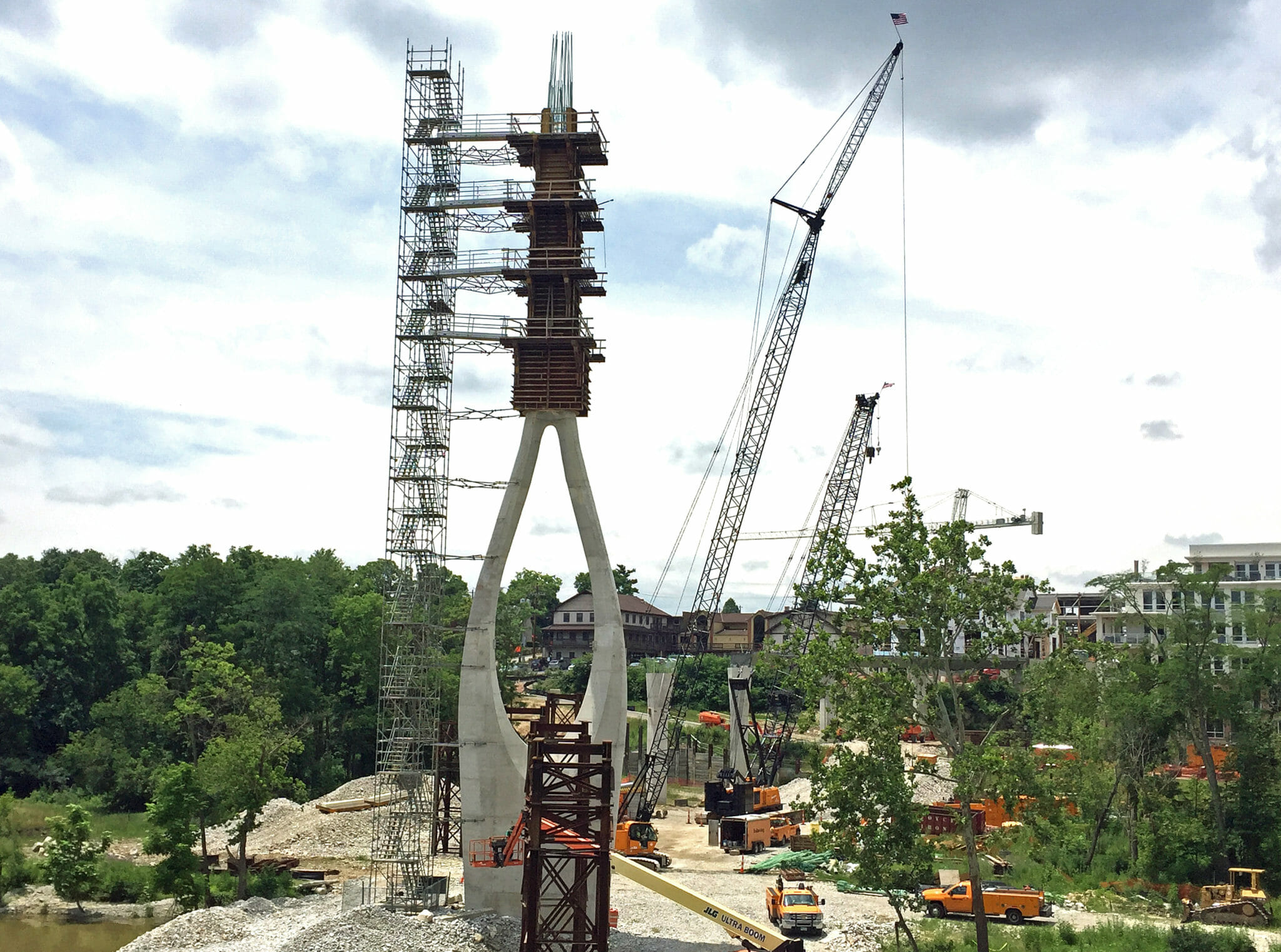

Kokosing began foundation work in May 2017 and self-performed the construction of all bridge foundations, bridge piers, the construction of the 172-feet-tall main pylon that supports the suspension cables, and the bridge deck totaling 2,100-cubic-yards of structural concrete; the installation of 608-feet of 120 mm main cable and 1,727-feet of 21 mm hanger cables, and the installation of 760 feet of variable geometry structural steel triangular box segments.  Of the 760-feet-long span, 500-feet is suspended by one main suspension cable on either side of architectural main pylon.

Kokosing worked closely with the City of Dublin and designer T.Y. Lin to resolve constructability issues during the plan finalization process.  This allowed for savings to the owner along with increased time to develop solutions to the unique challenges that the geometry of the project presented.

To learn more about this unique bridge, click on the link below:
http://bridgestreet.dublinohiousa.gov/pedestrian-bridge/

PROJECT DETAILS:
  • Project Owner:
    Dublin, Ohio
  • Project Value:
    $22,100,000
  • Delivery Method:
    CMGC
CAPABILITIES:
  • Bridges
  • D-B/CMGC


2021 PROJECT OF THE YEAR

American Society of Highway Engineers (ASHE) Great Lake Region


SOCAL ILLUMINATION AWARD OF MERIT- EXTERIOR 2021

IES Los Angeles and IES Orange County


BEST PROJECT 2020

ENR Midwest


PROJECT OF THE YEAR 2020

ASHE Central Ohio


PROJECT OF THE YEAR 2020

ASHE Great Lakes Region


SLAG CEMENT PROJECT OF THE YEAR 2020

Slag Cement Association


SOCAL ILLUMINATION AWARD OF MERIT EXTERIOR 2020

Illuminating Engineers Society of LA


EUGENE C. FIGG JR. MEDAL 2020

International Bridge Conference
