INSIDE THE PROJECT
Located in Columbus, Ohio, this inclined, single-rib arch bridge is the first of its kind to be built in the U.S. The $44 million, ODOT bridge replacement project is a three-span structure measuring 675-feet in length – with a main span of 400-feet. The bridge’s foundation consists of 30 each, 70-foot-long 6 foot diameter shafts reinforced with double-cage rebar. The cast-in-place concrete substructure includes internal cooling pipes to maintain rigorous temperature tolerances. Each pier has more than 325,000-pounds of reinforced steel and features single, 900-cubic-yard concrete pours. The superstructure of the 5.75-million-pound bridge consists of trapezoidal steel vehicular boxes with floor beams projecting from both sides that support the cast-in-place concrete deck.

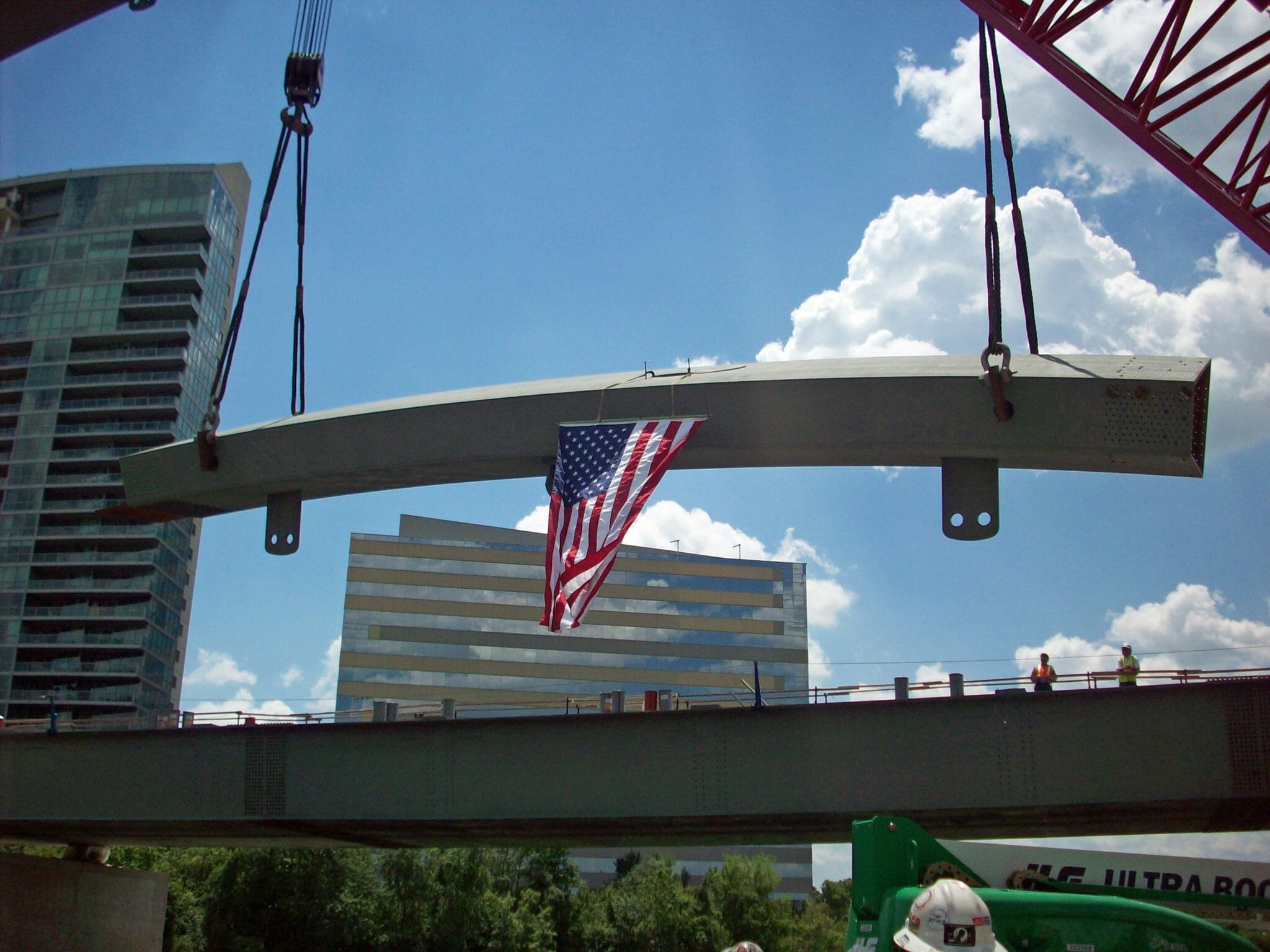

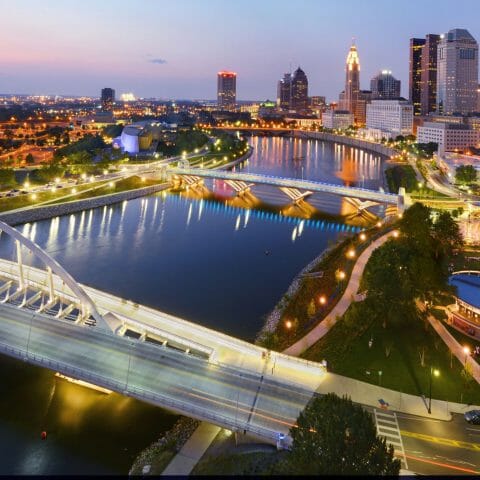

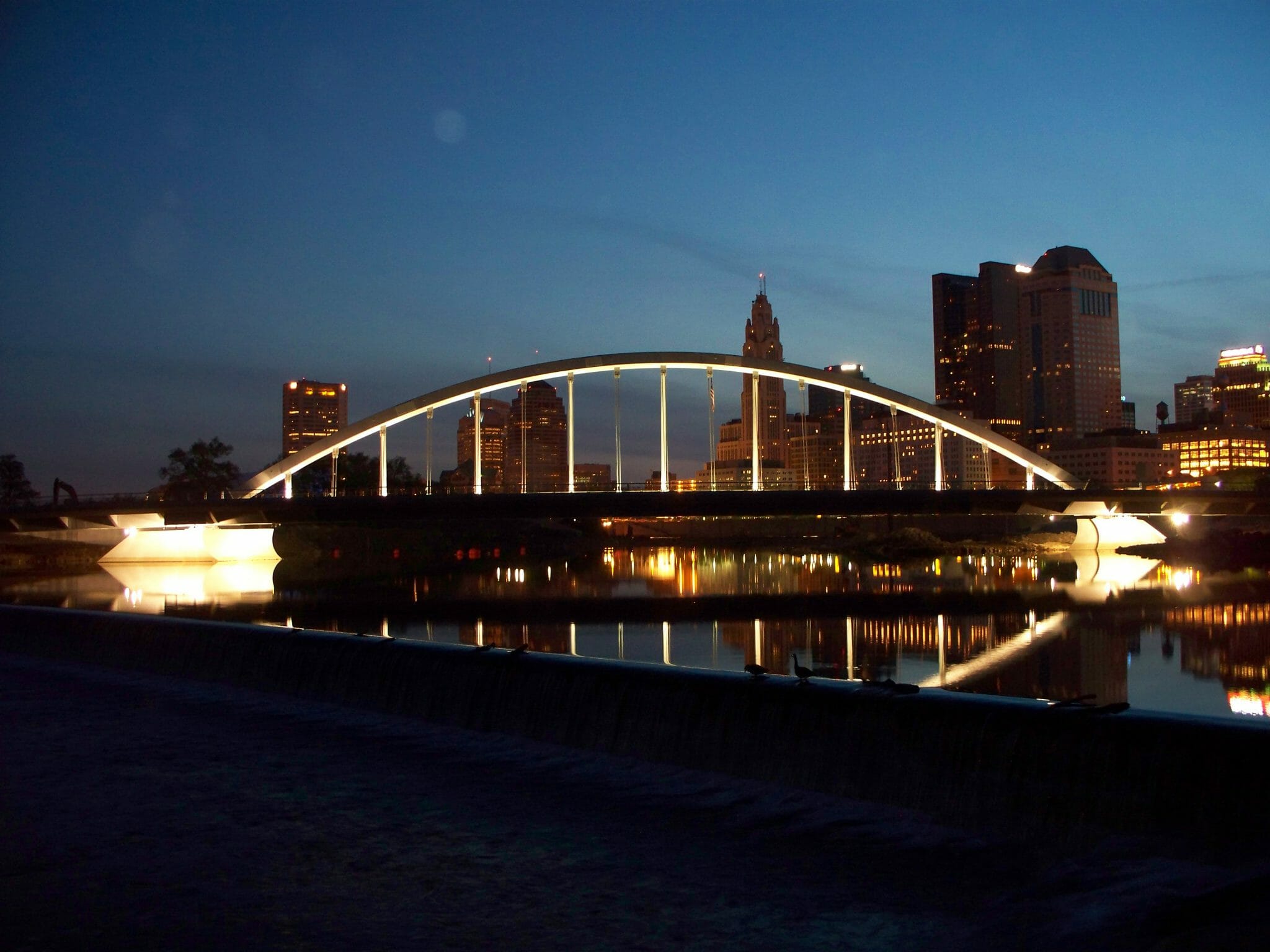

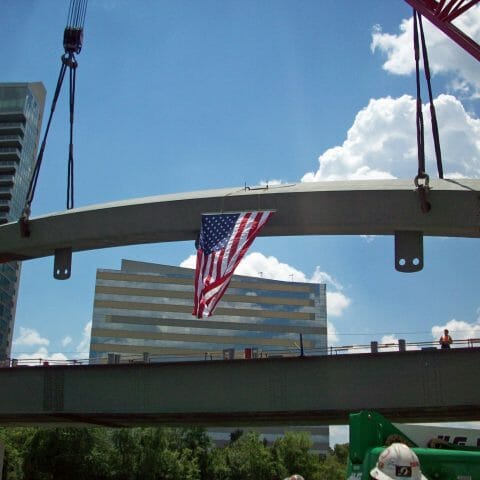

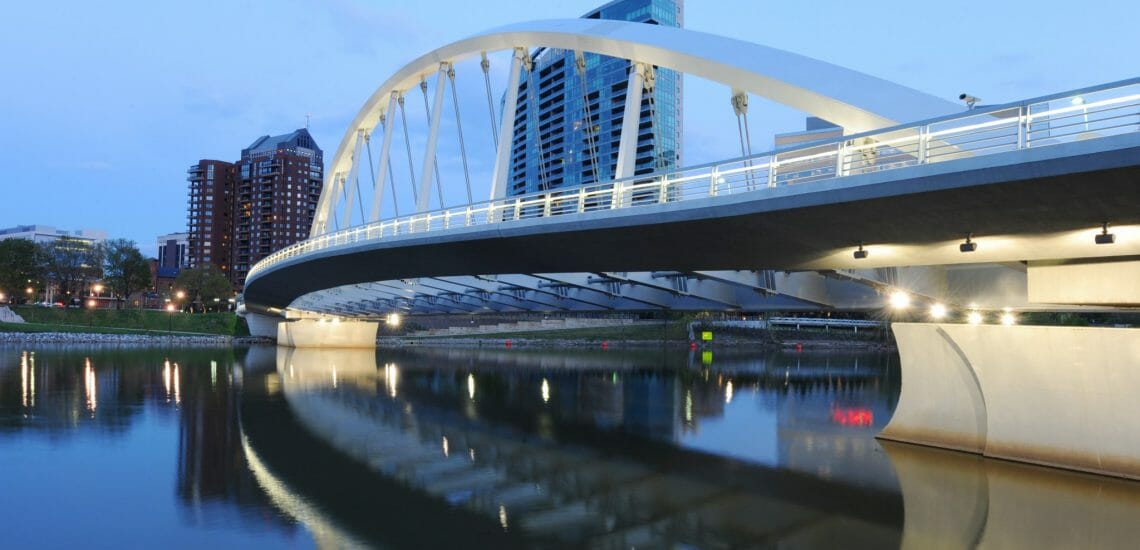

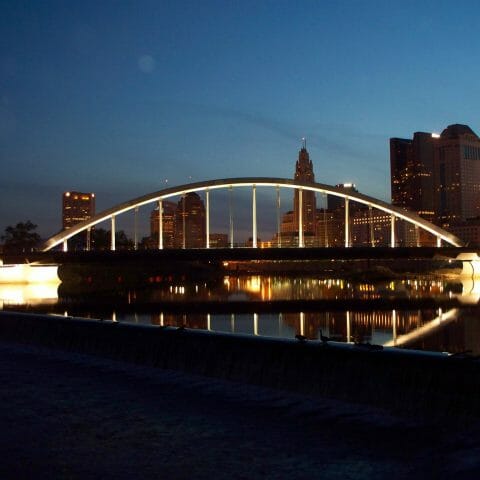

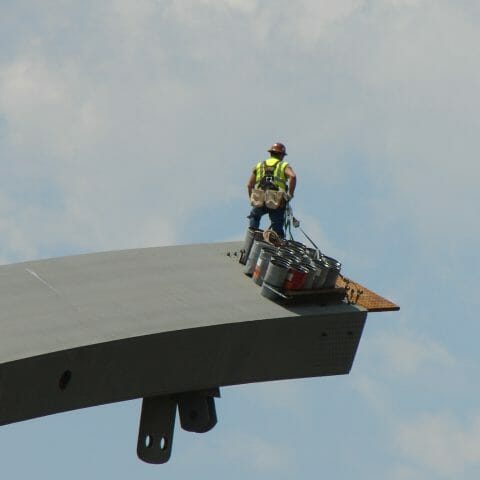

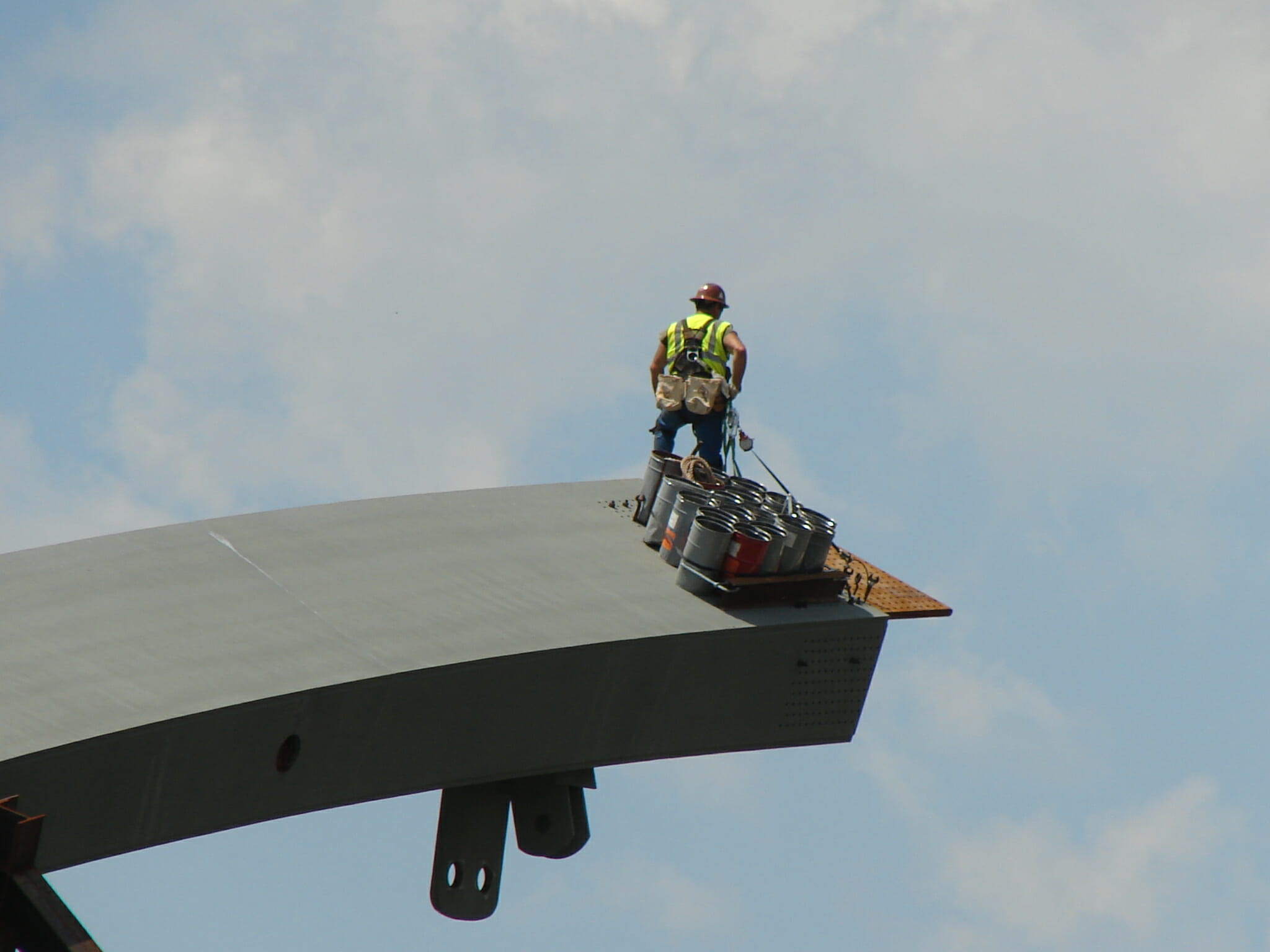

The structure’s focal point is a fabricated steel arch that spans the bridge’s main channel and supports the pedestrian walkway. Peaking at 60-feet above the deck, the arch is connected by rigid steel struts and cables. Exterior aesthetics also include a bikeway and scenic overlook. Roadway and utility work were also included on the approaches to the bridge.
PROJECT DETAILS:
- Project Owner:
Ohio Department of Transportation - Location:
Columbus, Ohio - Project Value:
$44,000,000 - Delivery Method:
Design-Bid-Build
CAPABILITIES:
- Beam/Girder Erection
- Bridges
- Post-Tensioning
PROJECT AWARDS INCLUDE:
- AGC Build Ohio Award, 2010
- National Steel Bridge Alliance, Prize Bridge Award, Major Span, 2012
- James B. Beechie Design & Preservation, 2012
- Association for Bridge Design (ABCD), Northeast Ohio Chapter, Outstanding Major Bridge Award, 2012
